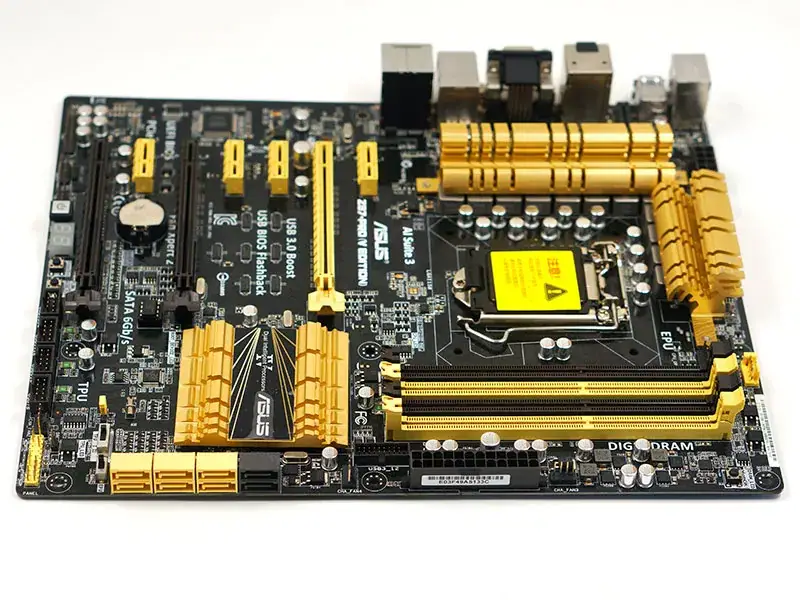

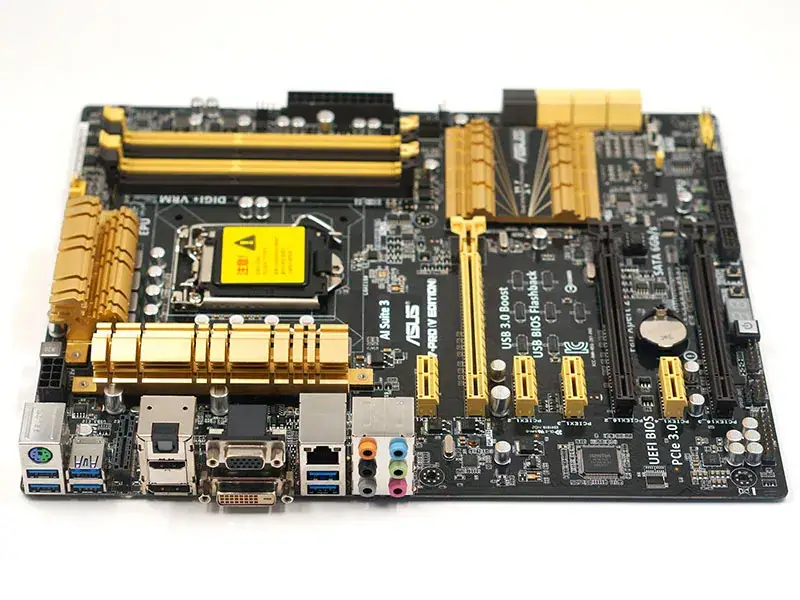

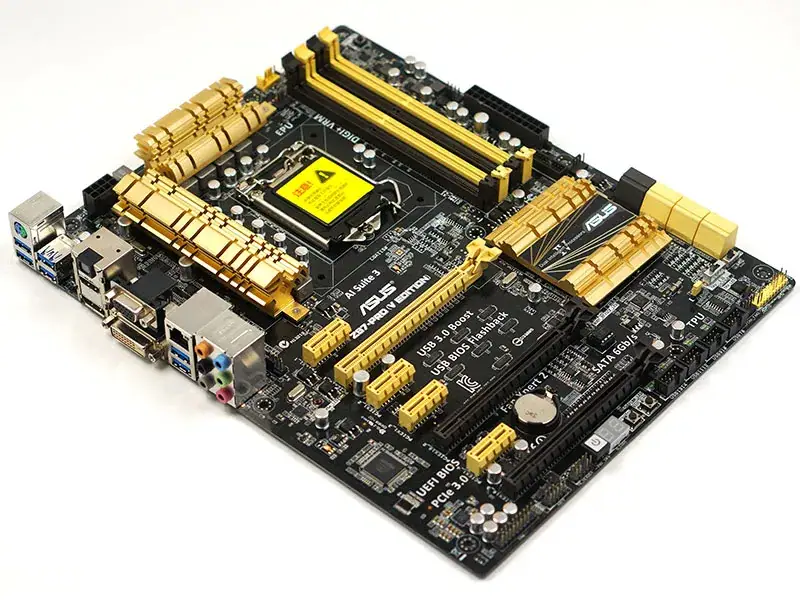

Материнская плата Asus Z87-PRO(VEDITION)

Intel Core i3 Processor

Intel Core i5 Processor

Intel Core i7 Processor

Intel Pentium Processor

PC3-12800 (DDR3-1600)

PC3-14900 (DDR3-1866)

PC3-16000 (DDR3-2000)

PCI-E 2.0 x16

PCI-E 3.0 x16

Audio-Out

Chassis Fan Connector

CPU Fan Connector

D-Sub

DVI-D

HDMI

PS/2 Keyboard

PS/2 Mouse

RJ-45

USB 2.0

USB 3.1

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 6 x USB 3.1 Gen 1 (blue)
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)

Internal I/O Ports

• 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin, blue)
• 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
• 1 x TPM header
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 4 x Chassis Fan connector(s) (4 x 4 -pin)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x TPU switch(es)
• 1 x EPU switch(es)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB BIOS Flashback® button(s)
