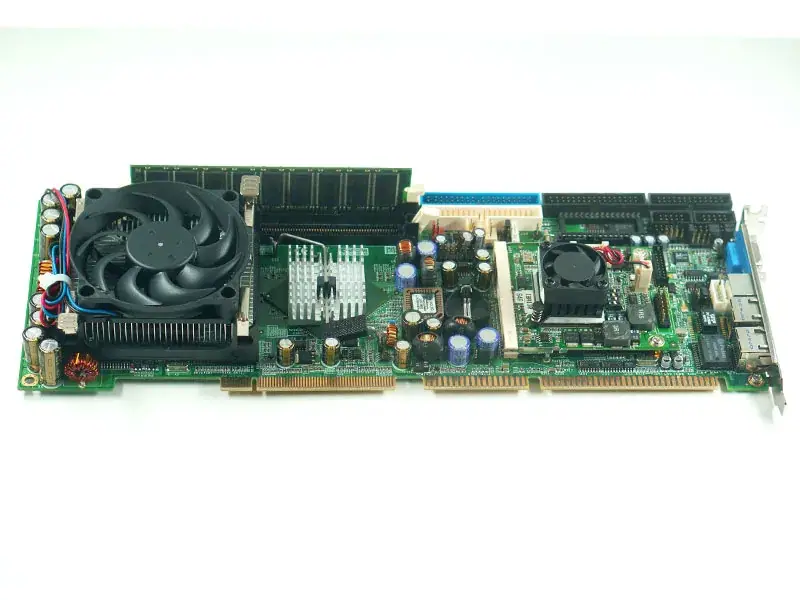

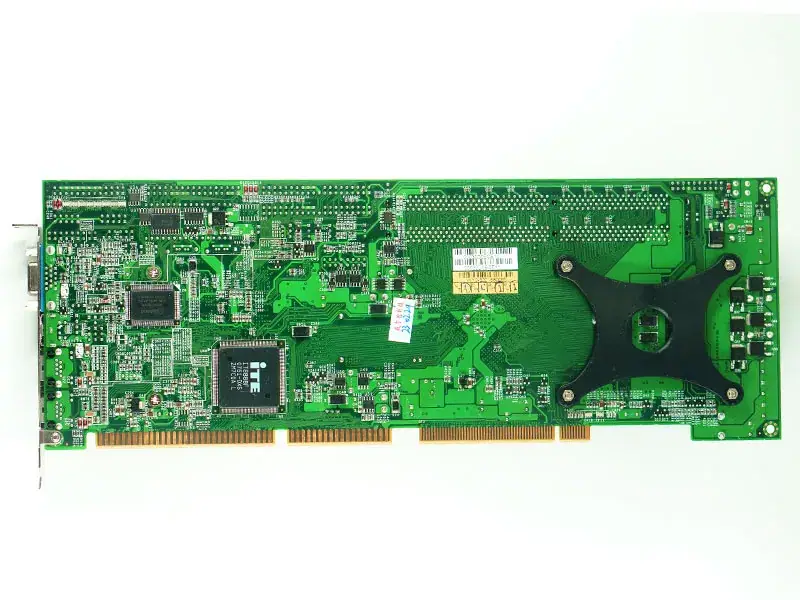

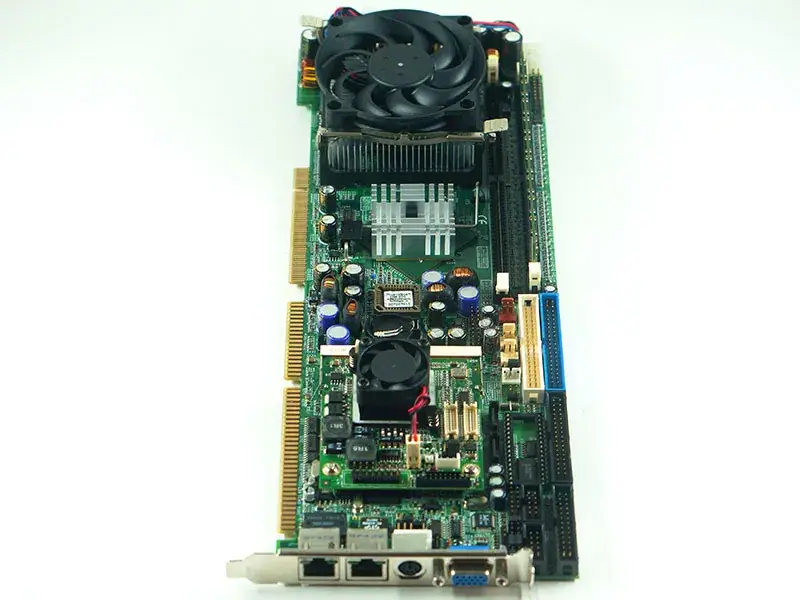

| Form Factor | АТХ Full Size CPU Card |
|---|---|
| Ethernet Chipset | Intel 82551 |
| System Chipset | Intel 875P |
| Audio | ICH5R integrated audio with AC97 codec, ALC650,Supports 5.1 channel |
| BIOS | Award BIOS, ACPI supported |
| Chipset | Intel 875P Chipset |
| CPU | Intel Pentium 4 with Hyper Threading Technology,2.0GHz ~ 3.2GHz+ |
| CPU Front Side Bus | 800MHz/533MHz/400MHz |
| CPU Socket | Socket 478 |
| Размеры | 338mm x 122mm (13.3″ x 4.8″) |
| Extra Features | ISA High Drive,PCI to ISA Bridge (ITE 8888),One MicroAGP socket,ATX 12V power connector |
| FDD Interface | Supports up to two floppy disk drives: 3.5″ and/or 5.25″ drives; 3 Mode support |
| Hardware Monitoring | Built in W83627HF; monitors system/CPU temperature and voltage status |
| IDE Interface | ICH5R built-in IDE1, IDE2 (Ultra DMA 33//66/100) |
| IrDA | Pin-header |
| Keyboard and Mouse Connector | PS/2 type |
| L2 Cache | 256K/512K, CPU integrated |
| LPC I/O | Winbond 83627HF LPC I/O supports IrDA, LPT, Com1 (RS232), COM2 (RS232/422/485), FDC and hardware monitoring |
| MicroAGP VGA | ATI Mobility M7 VGA, 32MB frame buffer (DDR) via IBA110-32, supports CRT, LVDS, TV-out, 2nd CRT,ATI Mobility M9 VGA, 64MB frame buffer (DDR) via IBA110-64, supports CRT, LVDS, TV-out, 2nd CRT,ATI Mobility M10 VGA, AGP8X, 64MB frame buffer (DDR) via IBA110-64A, supports CRT, LVDS, TV-out, 2nd CRT |
| Parallel Port | One parallel port supports SPP/EPP/ECP |
| Power Consumption | Pentium 4 2.2G Hz/FSB 400MHz with 512MB DDR SDRAM, +5V: 3.74A +12V: 4.59A,Pentium 4 3GHz-HT/FSB 800MHz with 512MB DDR SDRAM,+5V: 3.70A +12V: 6.60A |
| Primary LAN | Intel 82551QM 10/100Mb Ethernet controller |
| Processor | Intel Pentium 4 Celeron |
| Secondary LAN (optional) | Intel 82547GI Gigabit Ethernet controller |
| Serial ATA | Two SATA ports, support RAID 0 or RAID 1 |
| Serial Ports | One RS-232/422/485 and one RS-232 port |
| Solid State Disk Interface | DiskOnChip socket, supports up to 288MB |
| System Memory | Two sockets supports up to 2GB DDR266/333/400 memory,Support s dual channel, ECC function |
| USB | Supports 4 USB ports, USB 2.0 compliant |
| Watchdog Timer | Generates system reset; 256 levels |
