Материнская плата IPOX F845G/VE+

Name: Материнская плата IPOX F845G/VE+
Brand: IPOX
SKU: F845G/VE+
Price: 1926 USD
Availability: instock

$ долларов США1,926.00

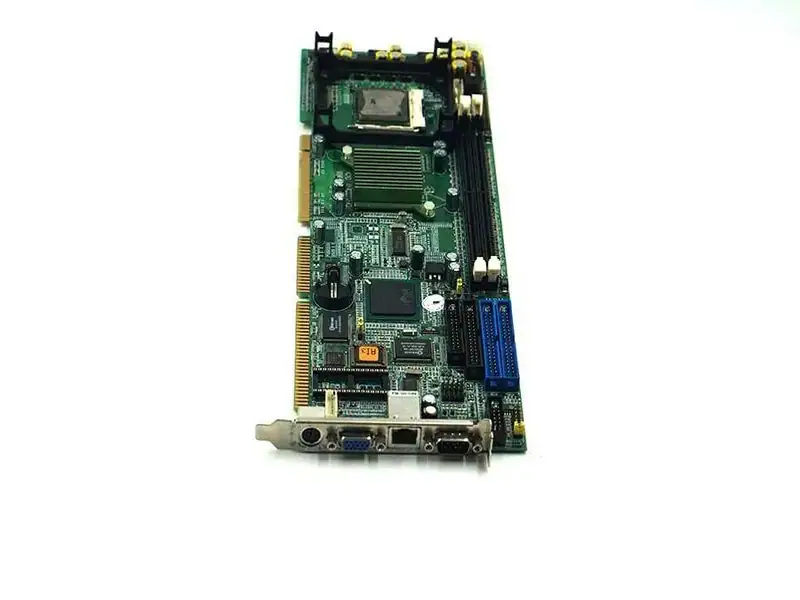

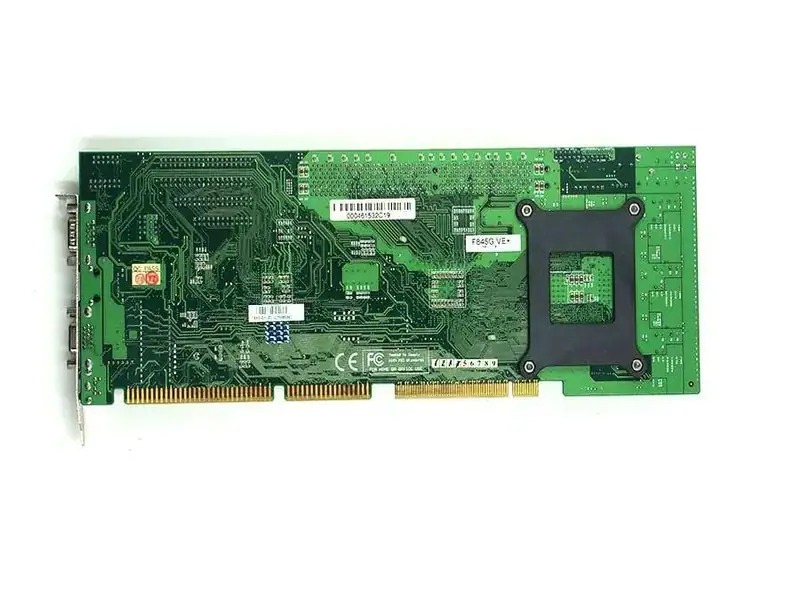

Промышленная материнская плата IPOX F845G/VE+

Спецификация материнской платы

Технические характеристики

h	CPU	Интел®Socket-478 Pentium®4/Celeron™ Processor Up to 3.06GHz
h	System Memory	Two 184-pins DDR DIMM Support DDR 200/266 SDRAM
h	System Chipset	Intel® 845GV / ICH4 chipsets
h	BIOS	Award BIOS
h	Display	Intel®845GV chipset integrated VGA function
h	Ethernet	Intel® 82562EM for 10/100 Bass-TX, support Wake up on LAN
h	I/O	Onboard Winbone® 83627HF chip, support: – 1 x IrDA by 5-pin pin-header – 1 x Floppy interface – 1 x SPP/EPP/ECP parellel port by pin-header – COM1 for RS-232 – COM2 for RS-232 /422 /485 (jumper selectable) – 4 USB 2.0 by pin header
h	SSD	DIP socket supports M-System DiskOnChip®flash disks
h	WDT	256 level software programmable
h	Hardware Monitering	Winbone®W83627HFchip, Monitering for CPU and system temperature, votage and fan speed
h	Support ATX power control function
h	Operating Temp	0 – 60°C
h	Relative Humidity	10~90% (Non-condensing)
h	Dimension	13.3″ x 4.8″ (338mm x 122mm)
h	Certification	CE,FCC pre-scan approval

Вес	1 кг
