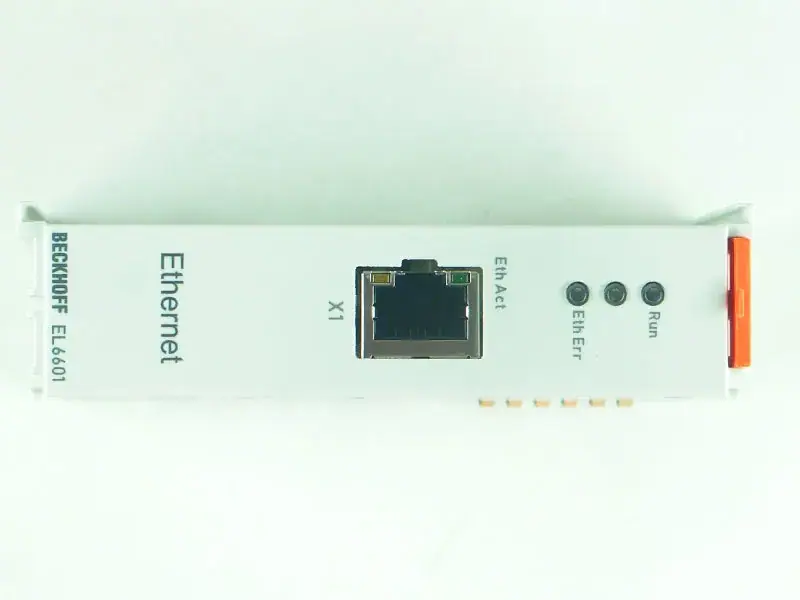

Модуль ПЛК BECKHOFF EL6601

Name: Модуль ПЛК BECKHOFF EL6601
Brand: BECKHOFF
SKU: EL6601
Price: 588 USD
Availability: instock

$ долларов США588.00

БЕКХОФФ EL6601

Артикул: EL6601 Категория: новый

Спецификация EL6601

Technical data	EL6601
Number of Ethernet ports	1
Bus system	all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode
Ethernet interface	10BASE-T/100BASE-TX Ethernet with 1 x RJ45
Data transfer rates	10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings
Cable length	up to 100 m twisted pair
Hardware diagnostics	status LEDs
Power supply	via the E-bus
Distributed clocks	–
Electrical isolation	500 V (E-bus/Ethernet)
Protocol	all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode
Конфигурация	no
Current consumption power contacts	–
Current consumption E-bus	typ. 260 mA
Special features	support of RT Ethernet, publisher/subscriber, DHCP/BootP server
Weight	approx. 75 g
Operating/storage temperature	-25…+60 °C/-40…+85 °C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
Approvals/markings	CE, UL, ATEX, IECEx, cFMus

Housing data	EL-24
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	specific push-in connection

Вес	1 кг

Отзывов пока нет.
