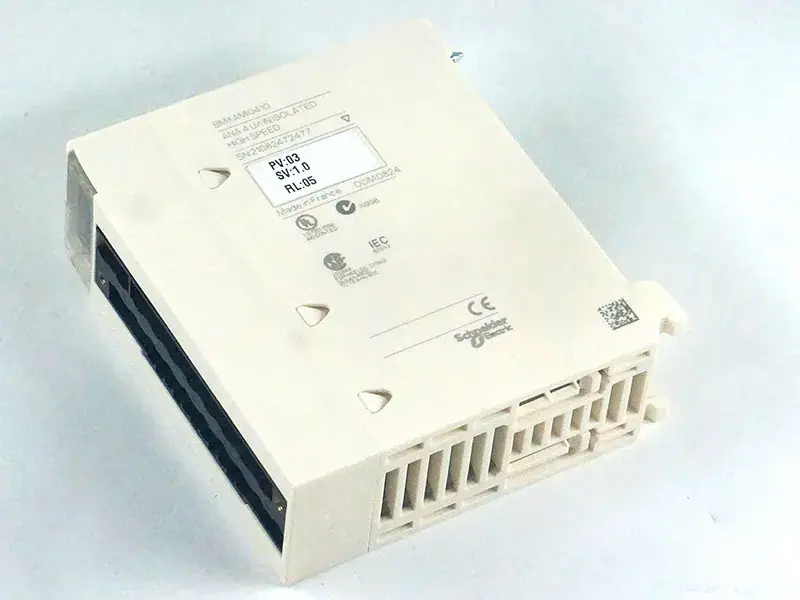

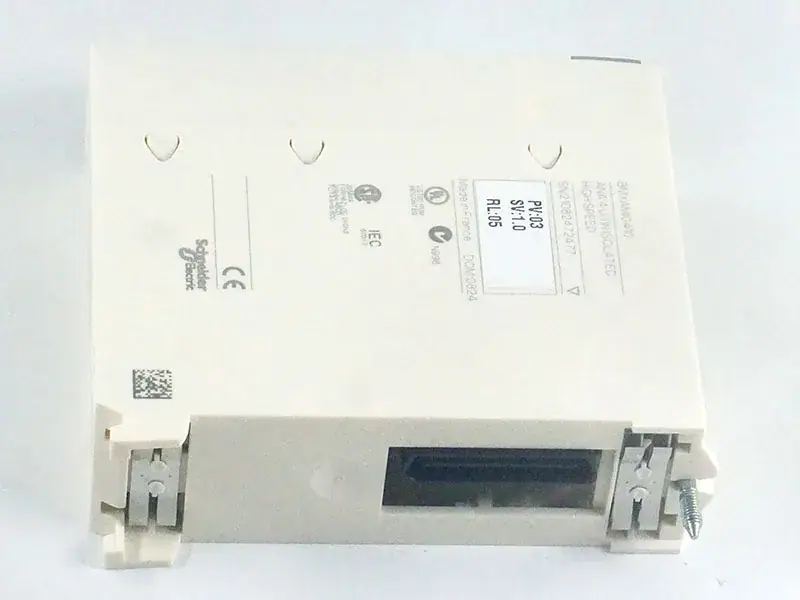

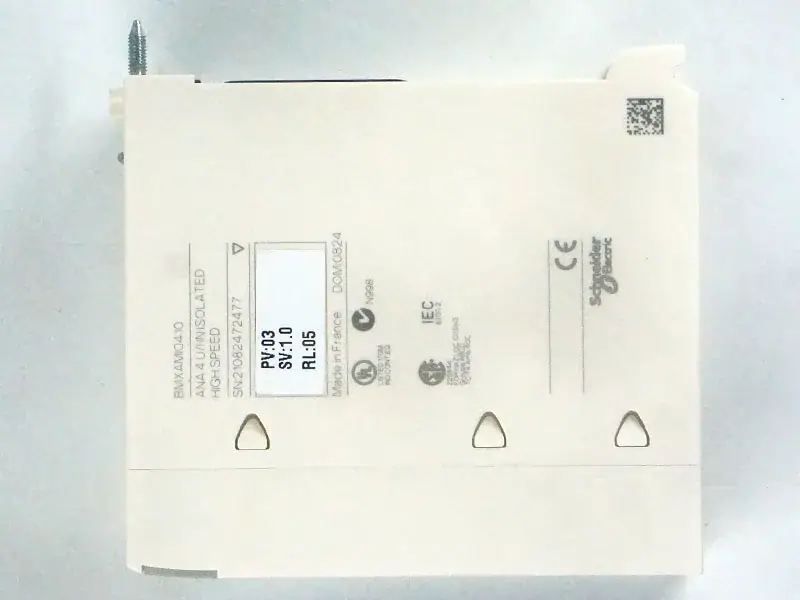

Модуль ЦП BMXAMI BMXAMI0410

$ долларов США189.00

BMXAMI0410 Процессор Шнайдер

Артикул: BMXAMI0410 Категория: новый

Key Features
Product area	Modicon X80
Product or component type	Analog input module
Electrical connection	20-pin 1 connector
Isolation between channels	Isolated
Input level	High level
Number of analog inputs	4
Analog input type	Current +/- 20 mA Current 0 – 20 mA Current 4 – 20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0 – 10 V Voltage 0-5 V Voltage 1-5 V

Additional features
Analogue/digital conversion	24 bits
Resolution of the analog input	16 bits
permissible overload at the inputs	+/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0 – 10 V +/- 30 V 0-5 V +/- 30 V 1-5 V +/- 90mA +/- 20mA +/- 90mA 0 – 20mA +/- 90mA 4 – 20mA
Входное сопротивление	10 MOhm in voltage mode 250 Ohm + 3.6…50 Ohm internal protective resistor in current mode
Accuracy of internal conversion resistance	0.1% – 15 ppm/°C
Type of filter	First order digital filtering
fast reading cycle time	1 ms + 1 ms x number of channels used
Rated reading cycle time	5 ms for 4 channels
Measurement error	<= 0.1% of total scale +/- 10 V 0 – 60 °C <= 0.1% of total scale +/- 5 V 0 – 60 °C <= 0.1% of total scale 0 – 10 V 0 – 60 °C <= 0.1% of full scale 0-5 V 0 – 60 °C <= 0.1% of full scale 1-5 V 0 – 60 °C <= 0.3% of full scale +/- 20 mA 0 – 60 °C <= 0.3% of full scale 0 – 20 mA 0 – 60 °C <= 0.3% of full scale 4 – 20 mA 0 – 60 °C 0.075% of full scale +/- 10 V 25 ° C 0.075% of total scale +/- 5 V 25 °C 0.075% of total scale 0 – 10 V 25 °C 0.075% of total scale 0-5 V 25 °C 0.075% of total scale 1-5 V 25 °C 0.15% of full scale +/- 20 mA 25 °C 0.15% of full scale 0 – 20 mA 25 °C 0.15% of full scale 4 – 20 mA 25 °C
Temperature drift	15 ppm/°C +/- 10 V 15 ppm/°C +/- 5 V 15 ppm/°C 0 – 10 V 15 ppm/°C 0-5 V 15 ppm/°C 1-5 V 30 ppm/ °C +/- 20 mA 30 ppm/°C 0 – 20 mA 30 ppm/°C 4 – 20 mA
Recalibration	Внутренний
Minimum crosstalk attenuation	80dB
Common mode rejection	90dB
digital value format	– 32768 to + 32767 in maximum user scale +/- 10000 by default
Isolation voltage	300V DC between channels 1400V DC between channels and ground 1400V DC between channels and bus
Measurement resolution	0.35mV +/- 10V 0.35mV +/- 5V 0.35mV 0 – 10V 0.35mV 0-5V 0.35mV 1-5V 0.92µA +/- 20 mA 0.92 µA 0 – 20 mA 0.92 µA 4 – 20 mA
maximum conversion value	+/-11.4V +/- 10V +/-11.4V +/- 5V +/-11.4V 0 – 10V +/-11.4V 0-5V +/-11 .4V 1-5V 0 – 30mA +/- 20mA 0 – 30mA 0 – 20mA 0 – 30mA 4 – 20mA
MTBF reliability	1200000 H
Operating altitude	0 – 2,000 m 2000 – 5000 m with derating factor
LED status display	1 LED (green) OPERATION 1 LED per channel (green) Channel diagnostics 1 LED (red) ERR 1 LED (red) I/O
Product weight	0.143kg
Power consumption in W	0.82W 24V DC typical 1.30W 24V DC maximum 0.32W 3.3V DC typical 0.48W 3.3V DC maximum
Current consumption	150 mA at 3.3 V DC 45 mA at 24 V DC

Вес	1 кг
