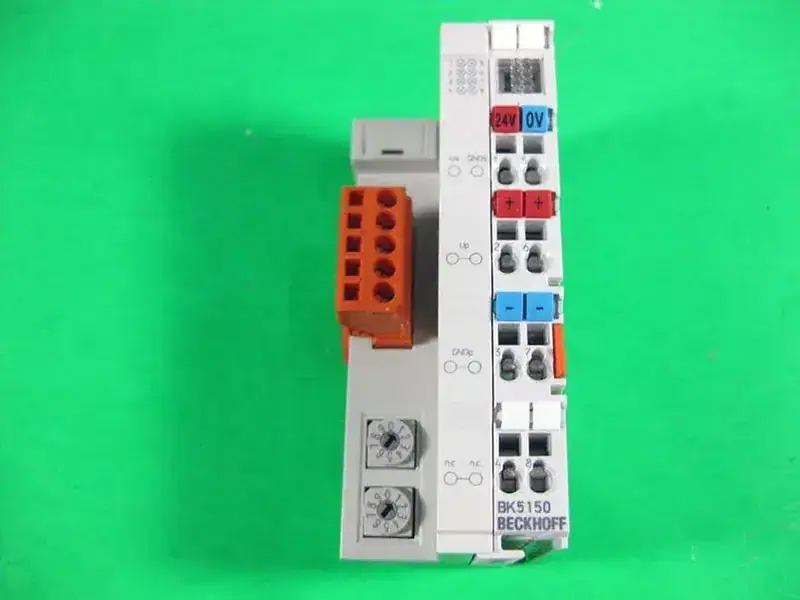

Спецификация BK5150
| Number of bus terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 16 Tx/Rx PDOs |
| Number of PDOs (CANopen) | 16 Tx/Rx PDOs |
| Further CANopen features | Life/node guarding, emergency object, variable mapping, store/restore |
| Transfer rates | automatic detection up to 1 Mbaud |
| Bus interface | Open style connector, 5-pin |
| transmission medium | shielded, twisted copper cable, 2 x signal, 1 x ground (recommended) |
| Power supply | 24V DC (-15%/+20%) |
| Serial interface | Configuration interface |
| Diagnostic LED | 2 x power supply, 2 x K-Bus, 2 x fieldbus |
| K-bus power supply | 1750mA |
| Process data operating modes | synchronous, cyclic, event-controlled, polling |
| Weight | approx. 100 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95% without condensation |
| Vibration/shock resistance | according to EN 60068-2-6/EN 60068-2-27 |
| EMC strength/emission | according to EN 61000-6-2/EN 61000-6-4 |
| Protection class/installation position | IP20/any |
| Approvals/Markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
