Материнская плата Supermicro X9DAI

Name: Материнская плата Supermicro X9DAI
Brand: Supermicro
SKU: X9DAI
Price: 713 USD
Availability: instock

$ долларов США713.00

Артикул: X9DAI Категория: использовал

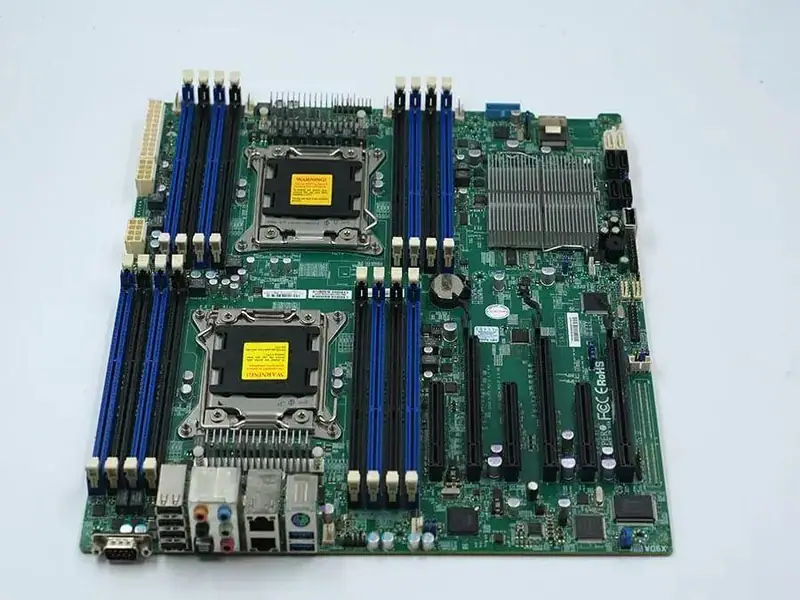

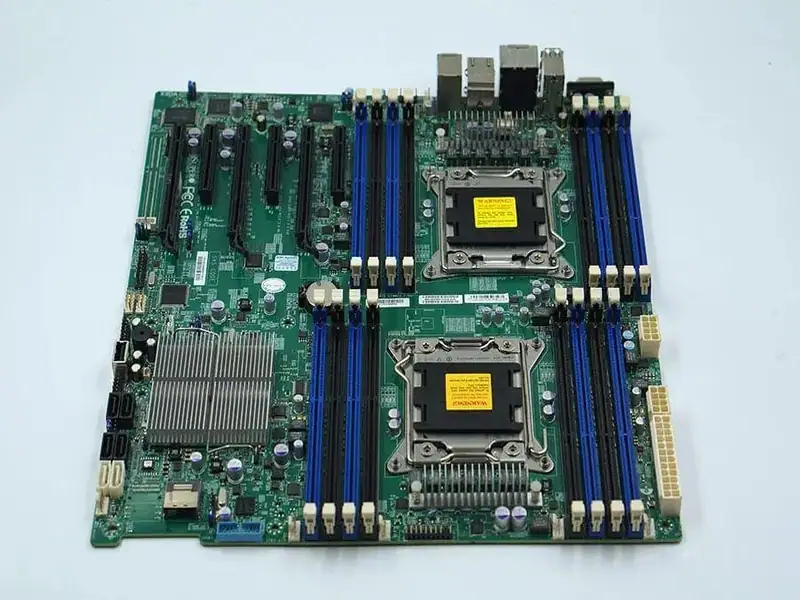

Изображения для серверной материнской платы X9DAI с чипсетом C602 LGA2011 DDR3

Beschreibung

Hersteller: Supermicro

Supermicro X9DAI

Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family?
Intel® C602 chipset; QPI up to 8.0GT/s
Up to 1 TB ECC DDR3, up to 1866 MHz; 16x DIMM sockets
Expansion slots: 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8 & 1x PCI-E 3.0 x4 (in x8)
Intel i350 Dual port GbE LAN
8x SATA2 and 2x SATA3 ports
4x USB 3.0 and 7x USB 2.0 ports


Product SKUs
MBD-X9DAi -O	X9DAi (Standard Retail Pack)
MBD-X9DAi -B	X9DAi (Bulk Pack)

Physical Stats
Form Factor	E-ATX
Размеры	12″ x 13″ (30.5cm x 33.2cm)

Processor/Cache
CPU	Intel® Xeon® processor E5-2600 and E5-2600 v2 family? (up to 150W TDP **) Dual Socket R (LGA 2011)
Cache	Up to 30 MB
System Bus	QPI up to 8 GT/s
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support

System Memory
Memory Capacity	16x 240-pin DDR3 DIMM sockets Up to 1 TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC RDIMM Up to 128GB DDR3 ECC/non-ECC UDIMM
Memory Type	1866/1600/1333/1066/800MHz* ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs Support ECC and non-ECC UDIMMs* Maximum memory speed may be capped by CPU. Please verify that the chosen CPU can support desired memory speed.
DIMM Sizes	32 GB, 16 GB, 8 GB, 4 GB, 2 GB, 1 GB, 64 GB LRDIMM
Memory Voltage	1.5 V, 1.35 V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel C602 chipset
САТА	SATA 2.0 3Gb/s with RAID 0, 1, 5, 10 SATA 3.0 6Gb/s with RAID 0, 1, 5, 10
AHCI SATA	SATA 2.0 3 Gb/s with RAID 0, 1, 5, 10 SATA 3.0 6 Gb/s with RAID 0, 1, 5, 10
SCU SATA	SATA 2.0 3 Gb/s with RAID 0, 1, 5, 10
SAS	SAS from C606 RAID 0, 1, 10 support (Optional: AOC-SAS-2-RAID5-KEY) RAID 5 support
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Nuvoton WPCM450 BMC
Network Controllers	Intel i350 Dual port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T; RJ45 output
Video	G200 (Renesas SH7757 BMC w/ graphic controller)
Audio	RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O	Nuvoton W83627

Input / Output
САТА	2x SATA 3.0 ports (6Gb/s) 8x SATA 2.0 ports (3Gb/s)
AHCI SATA	2x SATA 3.0 ports (6 Gb/s) 4x SATA 2.0 ports (3 Gb/s)
SCU SATA	4x SATA 2.0 ports (3 Gb/s)
SAS	8x SAS2 ports (6Gb/s)
LAN	2x RJ45 Gigabit Ethernet LAN ports
USB	4 USB 3.0 ports (Renesas uPD720200A; 2 rear + 2 via header) 7 USB 2.0 ports (4x rear + 2x via header + 1x Type A)
Audio	7.1 HD Audio with optical S/PDIF
Keyboard/Mouse	PS/2 Keyboard Combo port
Serial Port / Header	1 Fast UART 16550 port
IEEE 1394a	2 Headers
DOM	1x DOM (Disk on Module) power connector
TPM	1 TPM 1.2 20-pin Header

Chassis (Optimized for X9DAi )
Mid-Tower	CSE-732D4F-903B
Tower / 4 U Rackmount	CSE-743TQ-1200B-SQ
Important Chassis Notes	To support the new generation Intel® Xeon® processor-based motherboards, Revision M chassis are recommended.

SuperServer(s) with X9DAi
Model(s)	SYS-7037A-i SYS-7047A-T

Expansion Slots
PCI-Express	3x PCI-E 3.0 x16 slots 2x PCI-E 3.0 x8 slots 1x PCI-E 3.0 x4 (in x8) slot (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)

System BIOS
BIOS Type	128 Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1

Management
Software	SuperDoctor® III Watch Dog NMI
Power Configurations	ACPI / APM Power Management Main Switch Override Mechanism CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Suspend to RAM (STR)

PC Health Monitoring
Напряжение	Monitors for CPU Cores, +1.1V, +1.5V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages. 6+1 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Low noise fan speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors I²C temperature sensing logic Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED
Other Features	Chassis intrusion detection Chassis intrusion header SDDC Support РоХС

Operating Environment
Operating Temperature Range	10°C – 35°C (50°F – 95°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non-Operating Relative Humidity Range	5% – 95% (non-condensing)

Вес	1 кг
