Серводвигатель рулевого механизма SG90

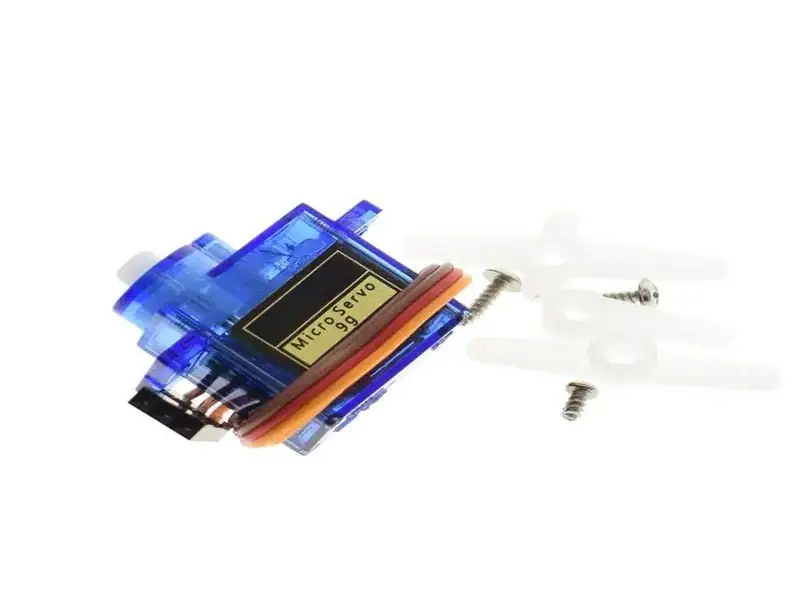

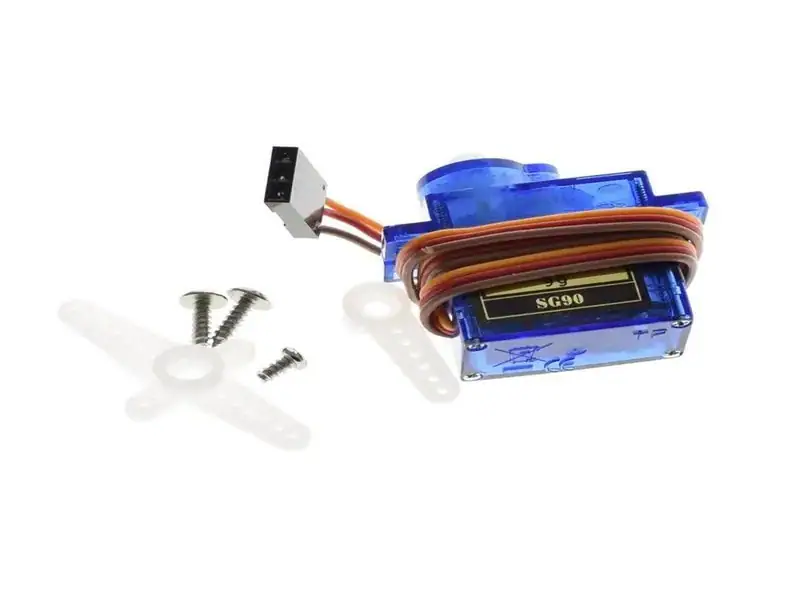

This small, inexpensive servo is ideal for a variety of applications, for example in model making. The SG90 servo is characterized above all by its compact design and its low weight of only 9g. For its size, it is still extremely powerful at 1.5kg/cm. The servo can rotate approximately 120 degrees (60 degrees in each direction). Three different servo arms are already included in the scope of delivery. It is also ideal for beginners who want to get something moving, as the servo works without a motor control and separate gear.

The servo can be operated with the Arduino Servo Library without any problems.

Application examples:

• RC models
• Modelling
• robot
• DIY electronics

Connections:

• Orange: PWM
• Red: 5VDC
• Brown: GND
