Материнская плата Advantech PCA-6187G2

Name: Материнская плата Advantech PCA-6187G2
Brand: Адвантех
SKU: PCA-6187G2
Price: 400 USD
Availability: instock

$ долларов США400.00

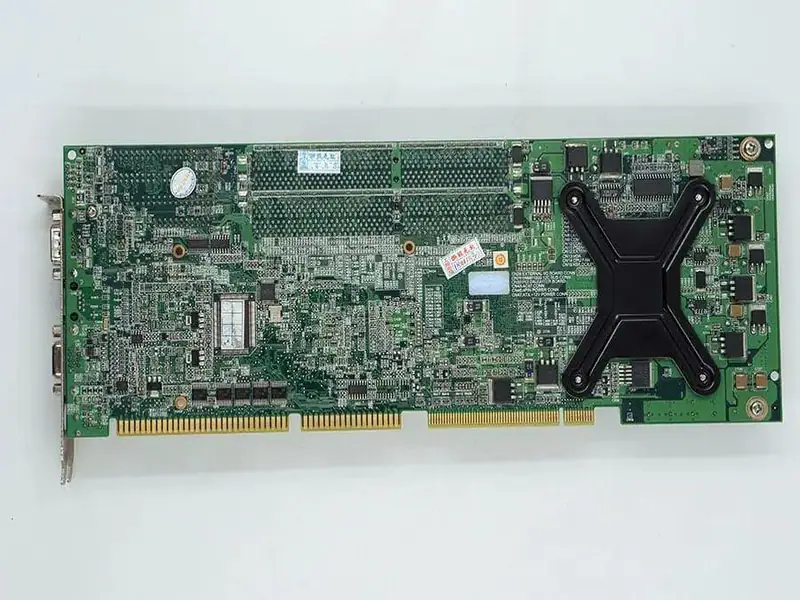

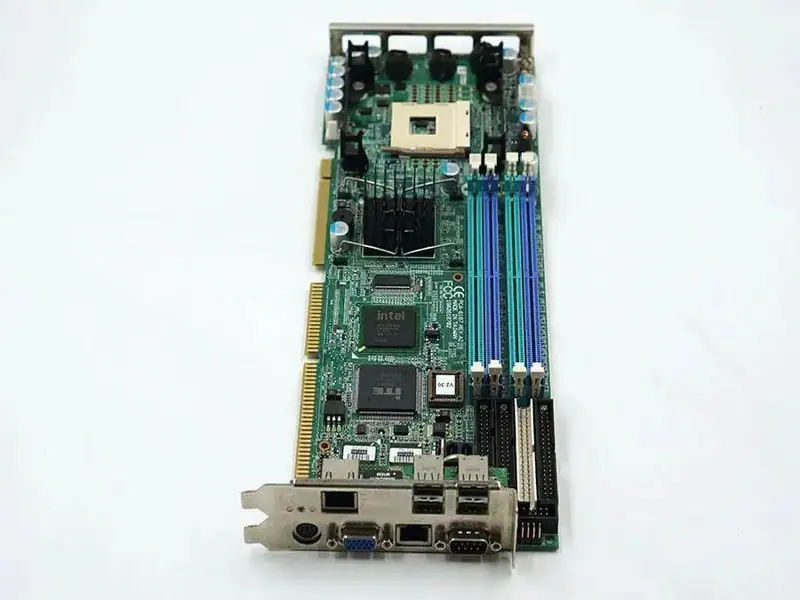

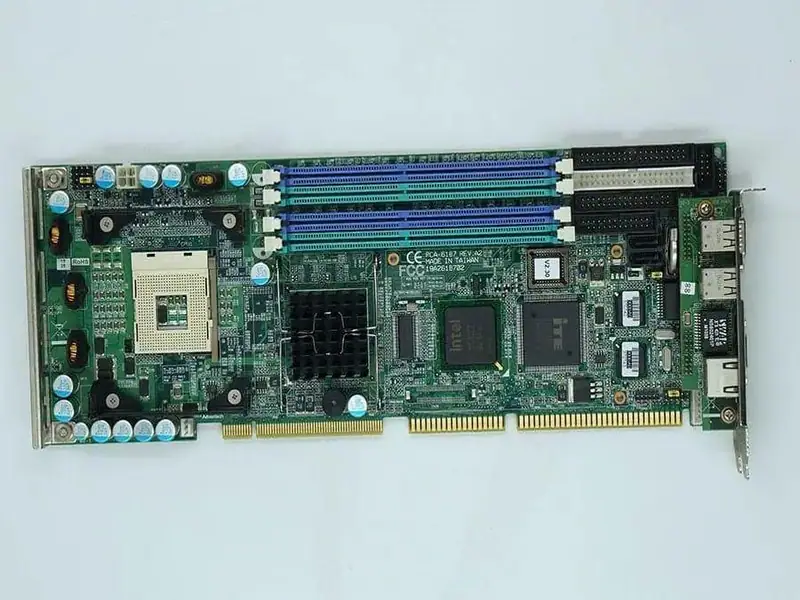

Промышленная материнская плата Advantech PCA-6187 REV.A2 PCA-6187G2

Артикул: PCA-6187G2 Категория: использовал

Спецификация материнской платы

Form Factor	АТХ
Ethernet Chipset	Intel 82541
Video Chipset	Intel 865G
Audio	Audio Output:AC97 audio interface (requires an audio extension module P/N: PCA-AUDIO-00A1E)
BIOS	Award 4 Mbit FWH
Board Type	Full Size
Channel	SATA-2 EIDE-2 (Max. 4 devices)
Chipset	Intel 865G + ICH5
Разъем	RJ-45 x 2
Controller	Chipset integrated VGA controller LAN 1: Intel 82562EZ (FE); Intel 82547GI (Gigabit, CSA) LAN 2: Intel 82541PI (Gigabit)
CPU	Intel Pentium 4 Intel Celeron D Intel Celeron
Размеры	338 x 122 mm (13.3″ x 4.8″)
Environment	0 ~ 60° C (32 ~ 140° F), depends on CPU’s speed
FDD	1
FSB	400/533/800 MHz
Input	10/100Base-T; 10/100/1000Base-T (optional)
ISA	HISA (ISA high drive)
L2 Cache	256 KB/ 512 KB/ 1 MB 256 KB 128/256 KB
Max Capacity	4 GB
Max Data Transfer Rate	150 MB/s
Max. Speed	3.06 GHz (533 FSB) 3.4 GHz (800 FSB) * Vcore 1.75 V CPU (Willamette) not supported 3.06 GHz 2.8 GHz
Parallel	1 (SPP/EPP/ECP)
PCI	32-bit/33 MHz
Power Consumption	Pentium 4 3.0 GHz (800 MHz FSB), 4 x 512 MB DDR 400 SDRAM +5 V -5 V +12 V -12 V 6.53 A 0.1 A 4.6 A 0.2 A
Processor	Intel Pentium 4
PS/2	1
Serial	2 (RS-232)
Socket	184-pin DIMM x 4
Technology	Dual Channel DDR 266/333/400 SDRAM
USB	Max. 6 (USB 2.0 compliant), 4 ports on board for G2 versions
VRAM	Dynamically shared system memory, 8 ~ 64 MB
Watchdog Timer	Output Interrupt: system reset IntervalProgrammable: 1 ~ 255 sec.

Вес	1 кг
