Материнская плата Advantech PCM-9683

$ долларов США82.00

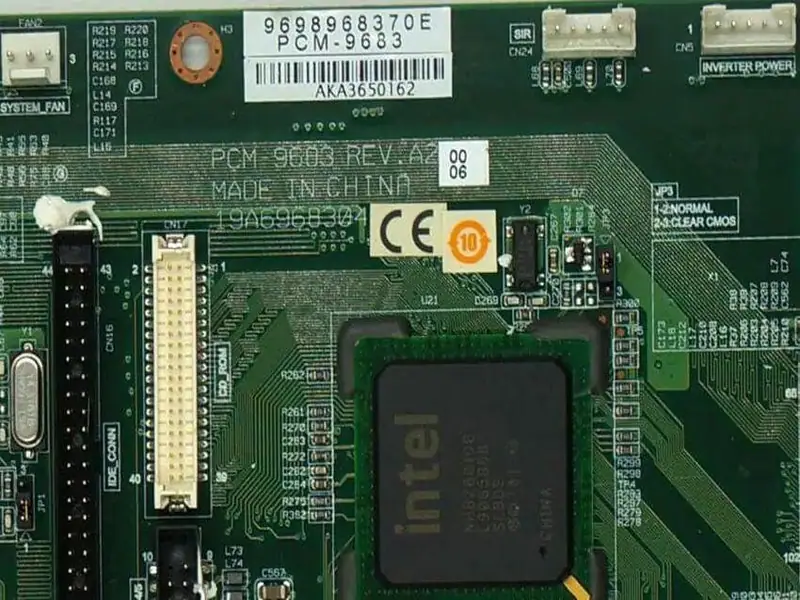

Промышленная материнская плата Advantech PCM-9683

Артикул: PCM-9683 Категория: использовал

Bus Expansion	One PCI expansion slot, one Mini PCI card
CD-ROM Drive	Compact 24X or above
Combo Drive	Optional DVD/CD-RW 8D/24W/24E/24R or above
Contrast Ratio	400:1
CPU	Supports Socket 478 based Pentium 4 CPU up to 3.06 GHz.
Размеры	(W x H x D) 420 x 323.3 x 130.5 mm (16.54” x 12.72” x 5.12”)
Disk Drive Housing	Room for one 2.5″ HDD
Display Type	Color TFT LCD
DVD-ROM Drive	Optional 6X or above
EMC	BSMI, VCCI, CE, FCC Class B, CCC
FDD Supports	720 KB / 1.44 MB FDD
Front Panel Protection	IP65/NEMA 4 compliant (not for SAW model)
HDD	IDE HDD interface (2.5″ HDD bay)
I/O Ports	2 Serial ports:RS-232 x 1, RS-232/422/485 x 1; 1 parallel port, 4 USB 2.0 ports; PCMCIA Type II x 2; 1 PS/2 mouse and keyboard interface; Mic-in, Line-in, Line-out; IEEE 1394 ports x 2; 6-in-1 card reader:supports CompactFlash, Micro Drive, Smart Media, Secure Digital, Memory Stick & Multimedia Card; S-Video port
Input Voltage	100~240 VAC @ 50 ~ 60Hz
LCD Display Operating Temperature	0 ~ 50°C
LCD MTBF	50,000 hrs
Luminance (cd/m2)	350
Max. Colors or Grayscales	262 k
Max. Resolution	1024 x 768
Memory	Supports up to 2 GB DDR SDRAM (184 Pin)
Network (LAN)	10/100Base-T Ethernet interface (Gigabit optional)
Operating Temperature	0 ~ 45°C (32 ~ 113°F)
Output Rating	180 W (max.)
Output Voltage	+3.3 V @16.8 A, +5 V@12 A, +12 V@10 A, -12 [email protected] A,+5 VSB@2 A
Pixel Pitch (mm)	0.297 x 0.297
Relative Humidity	10 ~ 95% @ 40°C, non-condensing
Safety	CB, CE, UL
Shock	10 G peak acceleration (11 msec. duration)
Simultaneous Mode	Да
Size (Diagonal)	15”
Viewing Angle	60° (left), 60° (right), 40° (up), 60° (down)
VR Controls	Brightness
Weight	7 kg (15.4 lbs)

Вес	1 кг
