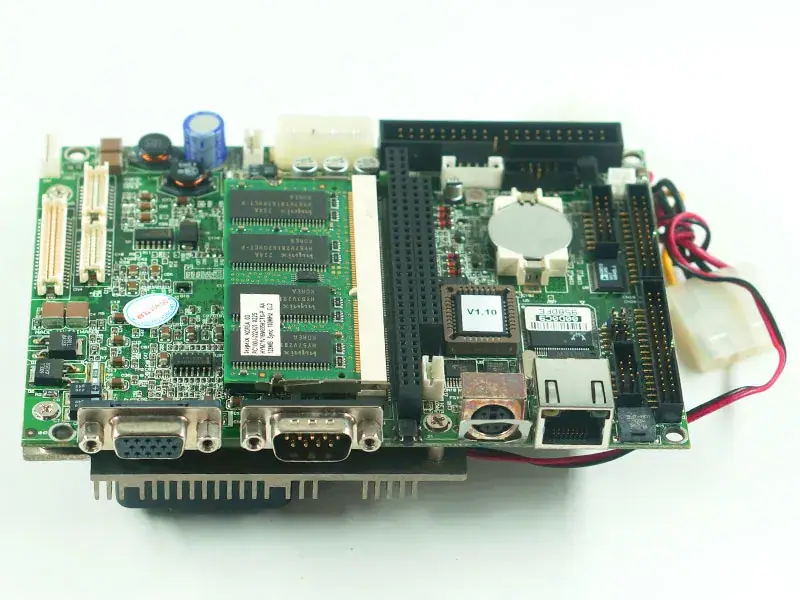

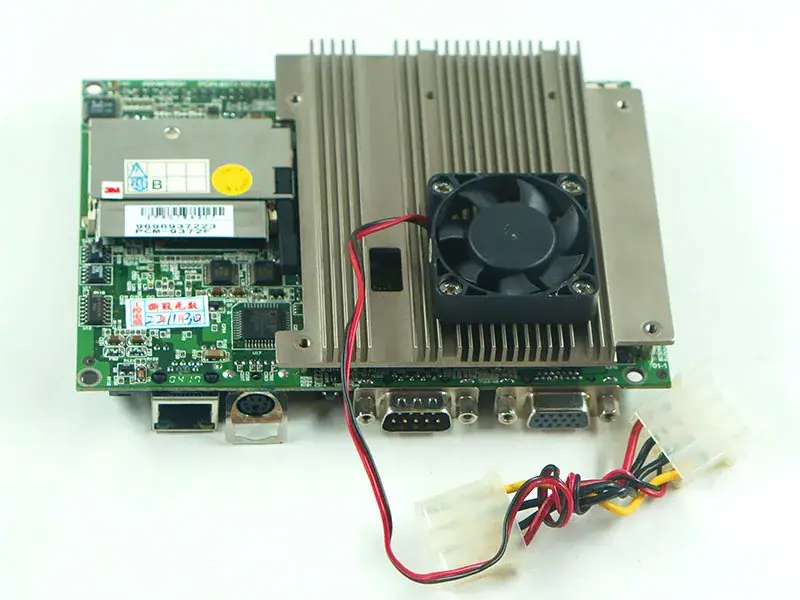

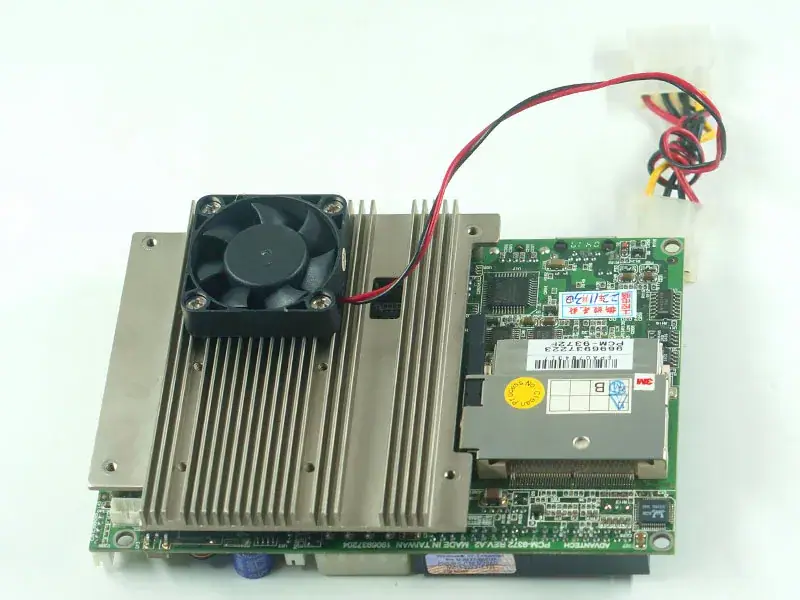

Спецификация материнской платы
| Form Factor | АТХ |
|---|---|
| Ethernet Chipset | Realtek RTL8100 |
| System Chipset | VIA PC-133 VIA PN133T (VT8606, VT82C686B, 133 MHz FSB) |
| Video Chipset | VIA VT8606T |
| Audio | VIA 82C686 support AC’97 2.0 compliant, Mic-in, Line-in, Line-out |
| BIOS | AWARD 256 KB Flash BIOS |
| CPU | Embedded VIA low power Eden 400/667 or VIA C3-LP 1G processor |
| Display | VIA VT8606 Twister chip with IntegratedS3 Savage4 2D/3D/Video Accelerator |
| Ethernet | RealTek RTL8100, IEEE 802.3u 100BASE-T Fast Ethernet compatibleBuilt-in boot ROM in Flash BIOS |
| Expansion | PC/104 |
| Processor | VIA C3 |
| SSD | CompactFlash card Type I/II |
| System Memory | SDRAM 144-pin SODIMM x 1, Max. 512 MB |
| USB | 2 USB ports, USB 1.1 compliant |
Features
- 100/133 MHz FSB and 4 x AGP graphics for high performance applications
- 2 Channel LVDS interface
- Embedded low power VIA Eden 400/667 MHz or VIA C3-LP 1 GHz processor
- Fanless, 0 ~ 60° C operation (Eden 400/667)
- Supports LCD backlight turn-off function
