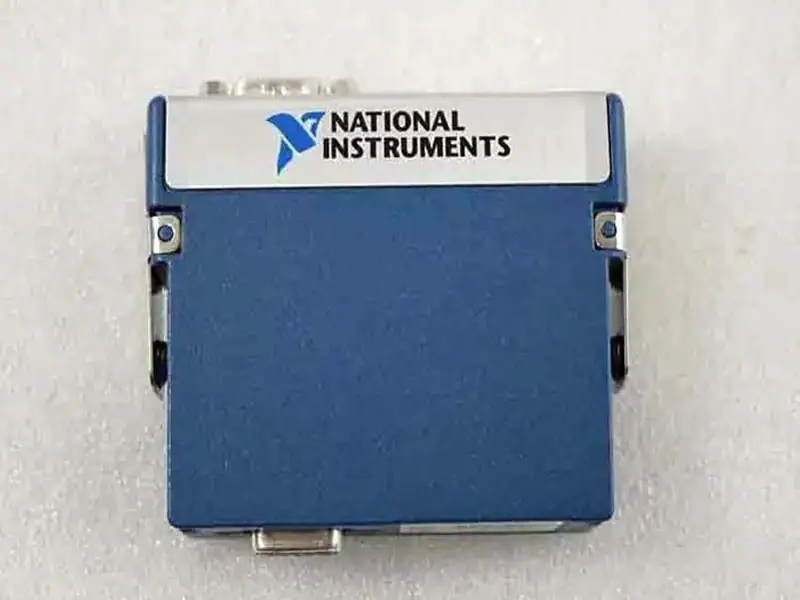

Карта сбора данных NI NI-9862

Name: Карта сбора данных NI NI-9862
Brand: NI
SKU: NI-9862
Price: 2405 USD
Availability: instock

$ долларов США2,405.00

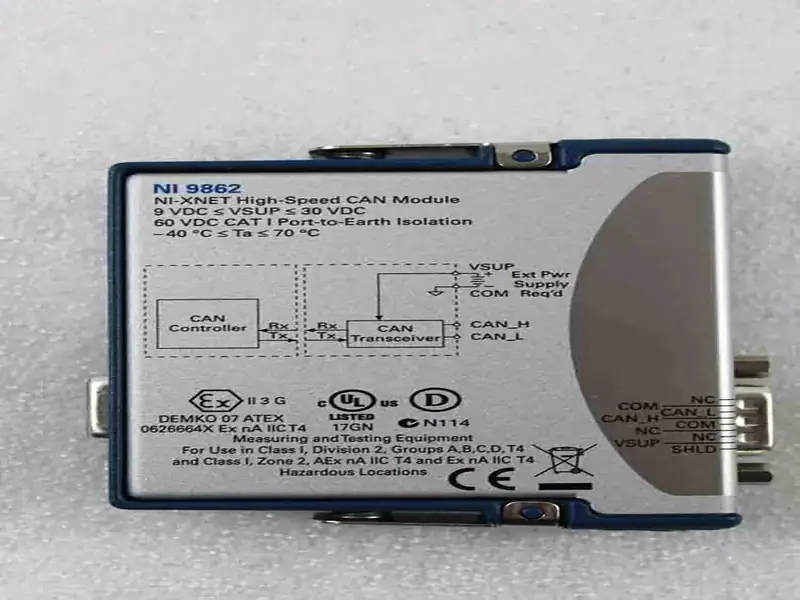

NI 9862 NI-9862 высокоскоростной NI-XNET CAN 781639-01

Артикул: НИ-9862 Категория: использовал

High-Speed CAN Characteristics

Transceiver	NXP TJA1041AT
Max baud rate	1 Mbps
CAN_H, CAN_L bus lines voltage	-27 to +40 VDC
CAN Supply voltage range (V_SUP)	+9 to +30 VDC
MTBF	Contact NI for Bellcore MTBF or MIL-HDBK-217F specifications.

Power consumption from chassis	1 W maximum (active mode)
Thermal dissipation (at 70 °C)	1.25 W maximum (active mode)

Connect only voltages that are within the following limits:

Maximum voltage^[1]
Port-to-COM	-27 V DC to +40 V DC maximum, Measurement Category I

External power supply (Vsup)

+9 V DC to +30 V DC

Isolation

Port-to-earth ground
Continuous	60 V DC, Measurement Category I
Withstand	500 V RMS, verified by a 5 s dielectric withstand test

Вес	1 кг
