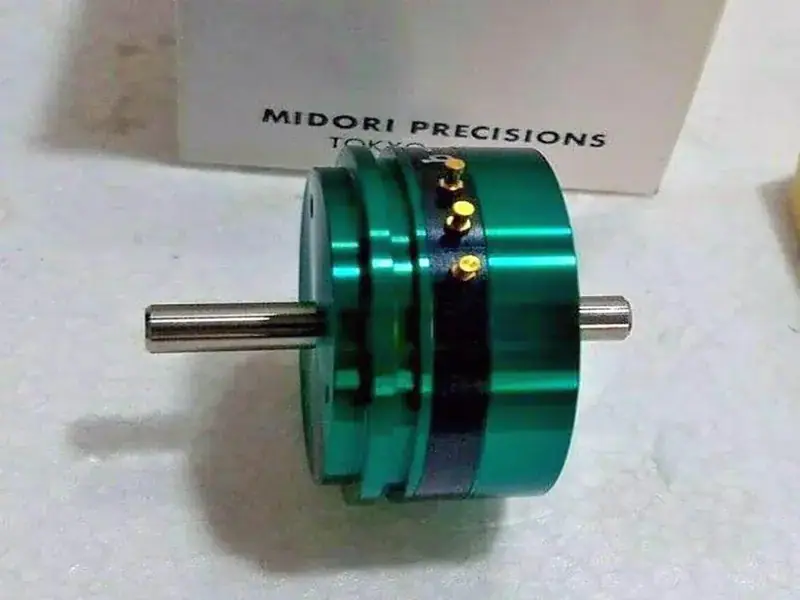

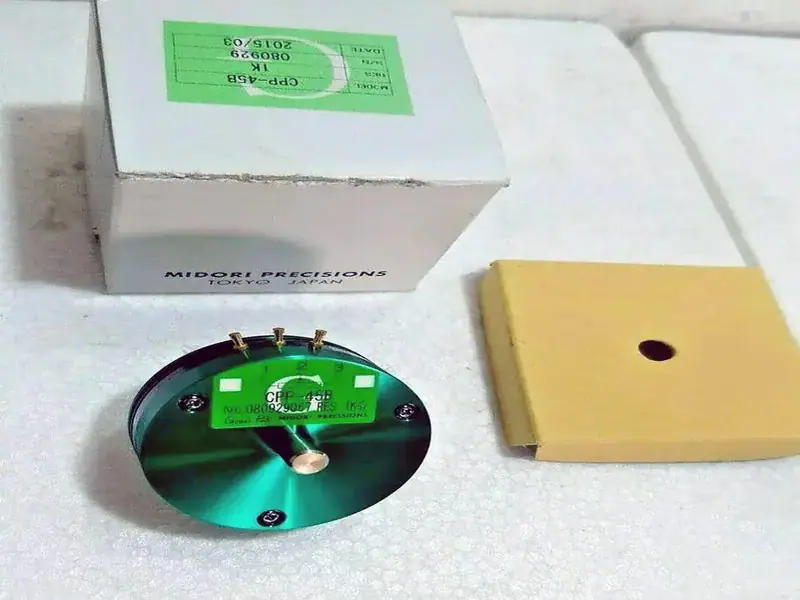

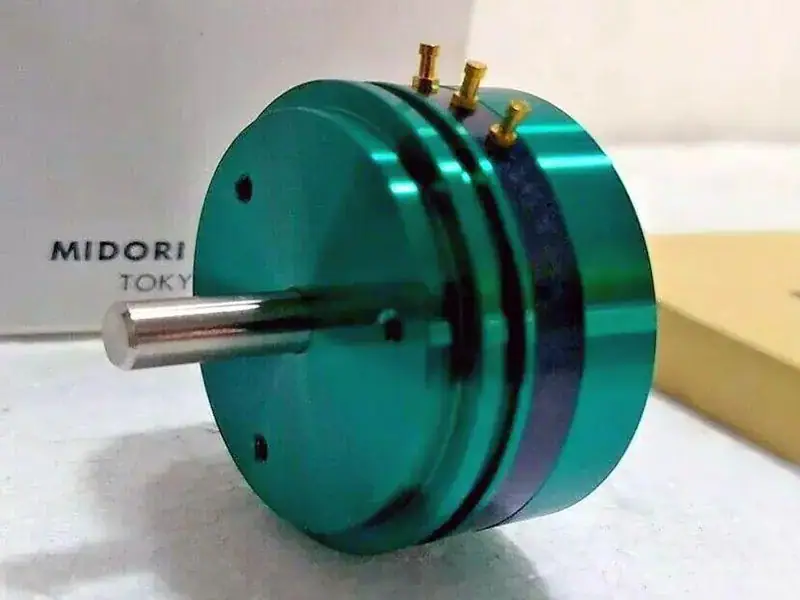

Датчик Midori Precision CPP-45B

Спецификация CPP-45B
・Conductive Plastic Angle Sensor
・Effective Electrical Travel : 350°
・Independent Linearity : ±0.3%
・Servo Mount and Screw Mount
・Shaft：
・CPP-45 : φ4mm Shaft
・CPP-45B : φ6mm Shaft
【Options】
・Independent Linearity : ±0.1%
・Multi Ganging : More than 4 sections, please contact us.
・Additional Taps : Up to 8 taps
For Output : Type (A) … No shorted angle
For Input : Type (B) … 1~5°shorted on Tap
【Material】 ・Additional Center Tap :
・Housing : Aluminum C.T(A) … No shorted angle
・Shaft : Stainless Steel C.T(B) … Shorted on Tap (Shorted angle 1~5°)
