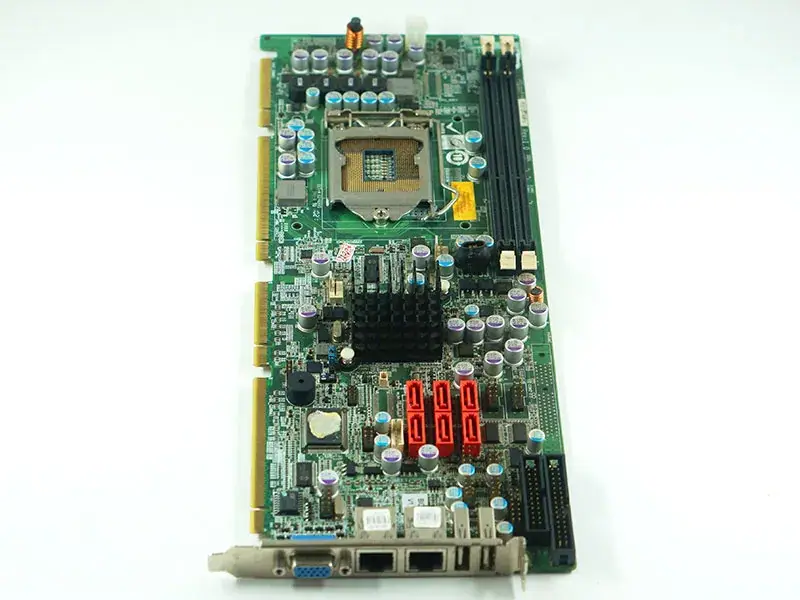

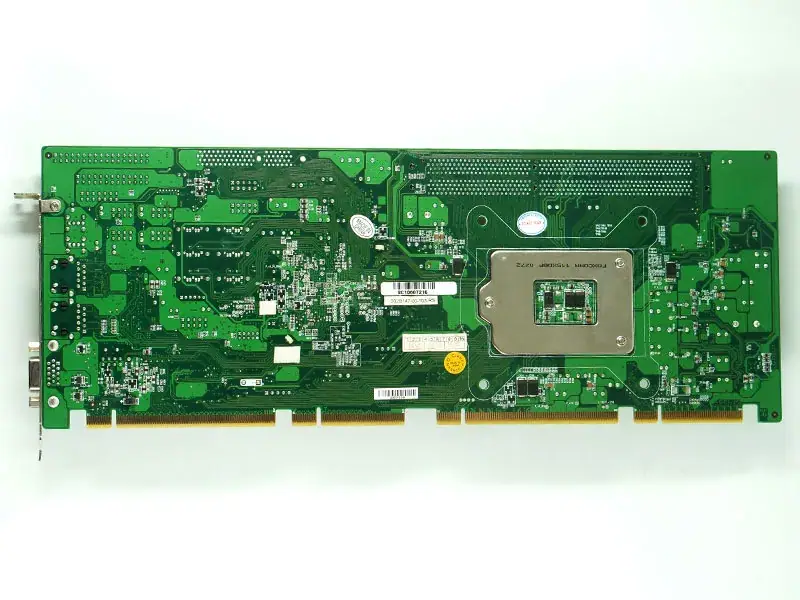

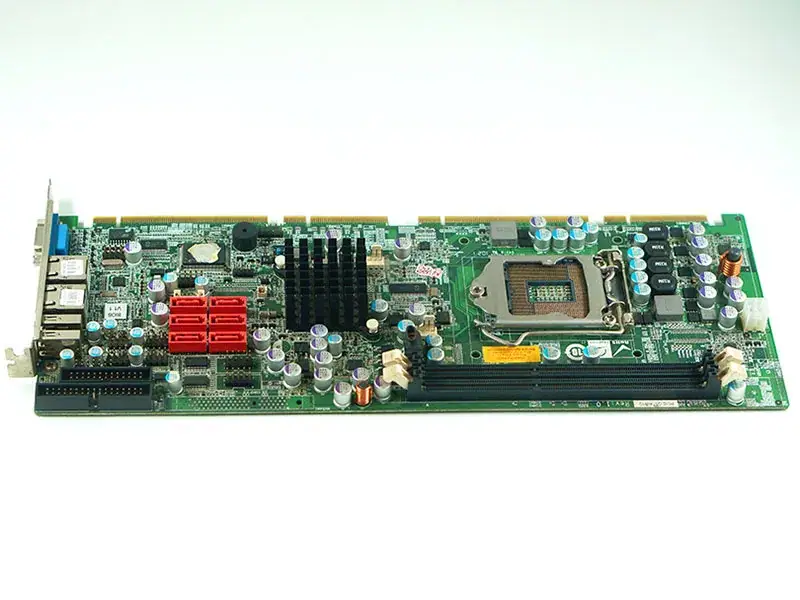

マザーボードの仕様
| CPU Cooler | |
|---|---|
| CPU Cooler | CF-1156A-RS-R11 CF-1156E-R11 |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Expansion Slots | |
| Expansion Slots | N/A |
| I/O Interface | |
| Audio | IEI AC-KIT-892HD-R10 7.1-channel HD audio kit via the on-board 10-pin header connector |
| Digital I/O | 8-bit Digital I/O |
| Display | 1 x VGA |
| Ethernet | LAN1: Intel® 82583V PCIe GbE controller LAN2: Intel® 82578DM with Intel® AMT 6.0 supported by iEZman software UI |
| I/O Interface | |
| I/O Interface | 12 x Internal USB 2.0 |
| 1 x KB/MS | |
| 1 x LPT | |
| 2 x USB 2.0 | |
| 1 x VGA | |
| 力 | |
| Power consumption | [email protected], [email protected], [email protected], [email protected] (Intel® Core™ i5 660 3.3GHz CPU with two 2GB 1066 MHz DDR3 memory) |
| Storage | |
| Storage | 6 x SATA 3Gb/s (RAID 0/1/10/5) 1 x FDD |
| System | |
| Chipset | Intel® Q57 |
| CPU | Intel® Core™ i7/i5/i3, PentiumR processor |
| CPU Socket | LGA1156 |
| Memory Max. | Two 240-pin 1066/1333MHz dual-channel DDR3 SDRAM DIMMs (system max. 8GB) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
