Euresys GRABLINK Expert 2 DAQ カード

仕様

Features
■ 64-bit, 66 MHz PCI bus
■ Supports line- or area-scan cameras
■ Camera Link® Base/Medium configurations: 24-bit/48-bit @
up to 60 MHz
■ Asynchronous reset, exposure control and I/O lines
(trigger & strobe)
■ 16 MB frame buffer
■ Camera Link® serial line configurable as an additional PC
COM port

General

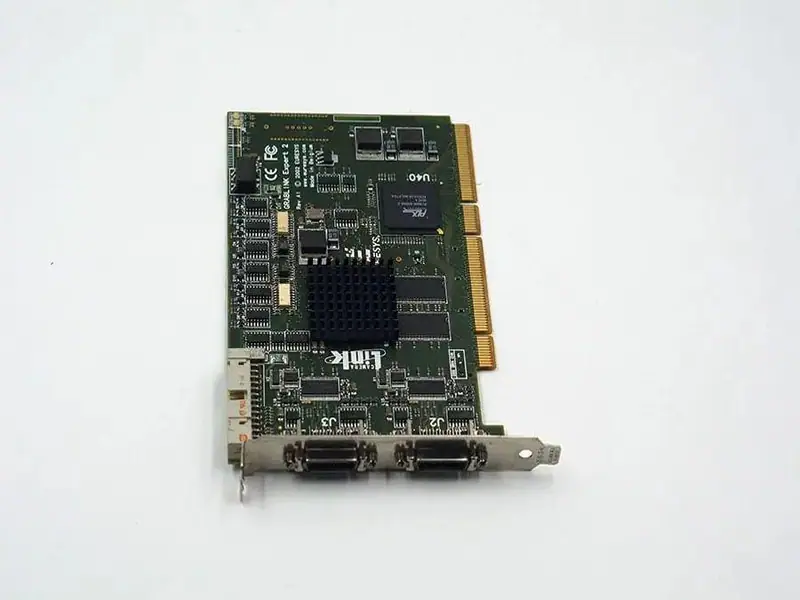

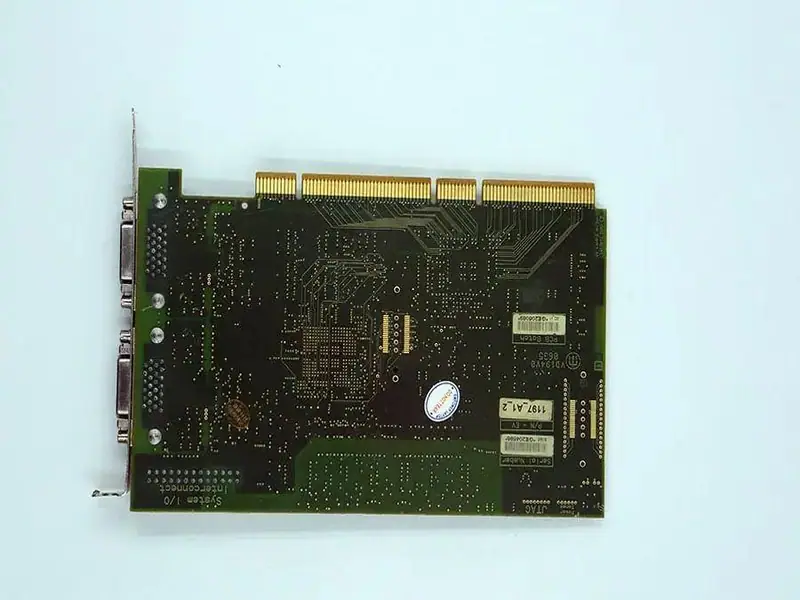

The Grablink Expert 2 is a high-performance 64-bit, 66 MHz PCI bus board capable of acquiring images in
2-Base or one Medium configuration. The Grablink Expert 2 is a high-speed PCI frame grabbers
for line- or area-scan digital Camera Links®.
State-of-the-art cameras are easily connected with off-the-shelf Camera Link® compliant cables. The
Grablink Expert 2 is ideal for industrial applications such as inspection of high-speed moving objects, web
inspection or high-resolution acquisition.
